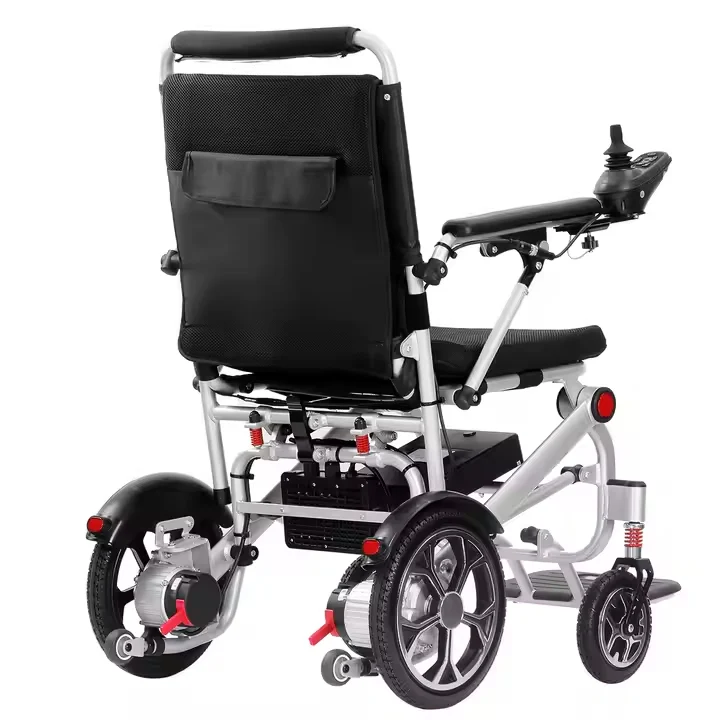

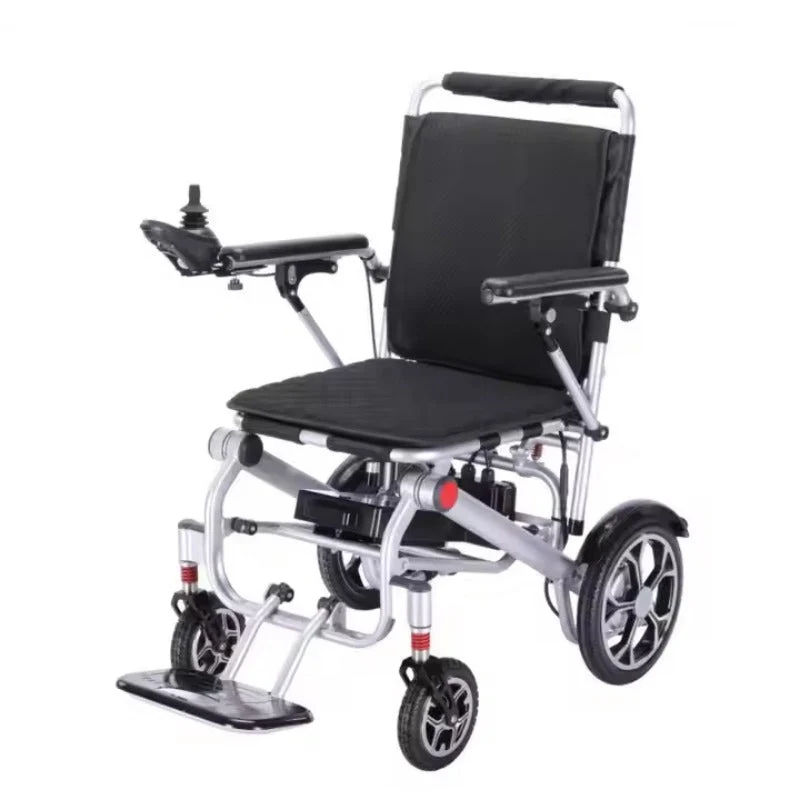

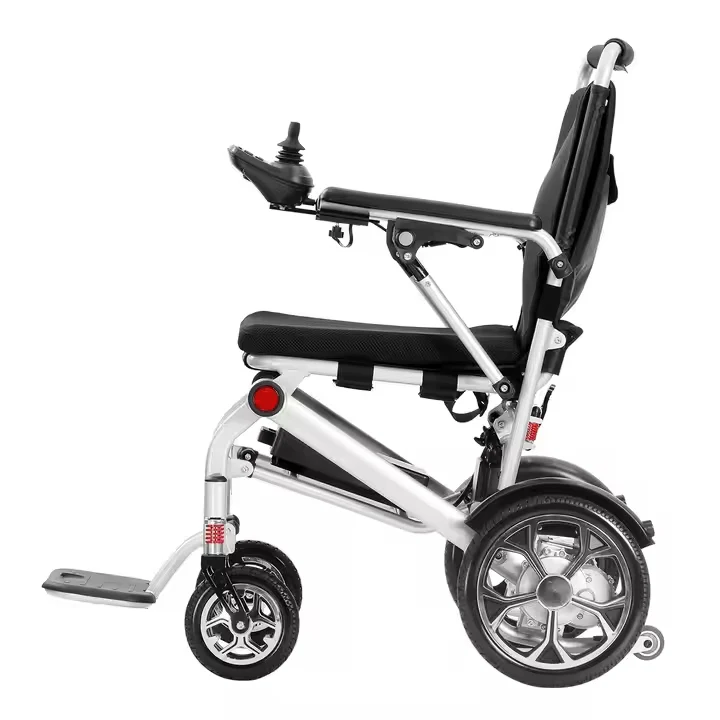

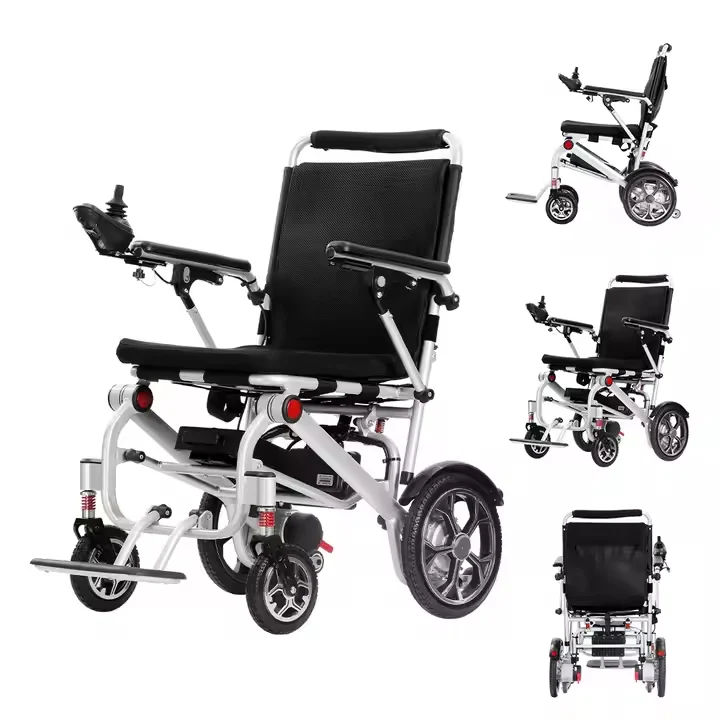

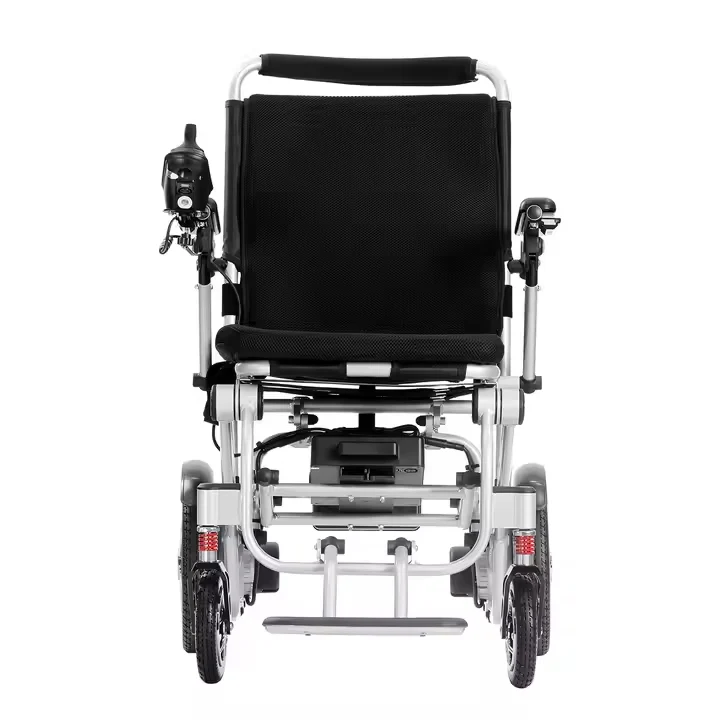

The Lightweight Folding Electric Wheelchair, Model 76003, combines dual motor power with a lightweight aluminum alloy frame to support users up to 130 kg. Weighing just 17.5 kg, it folds within 5 seconds for convenient storage and transport. Designed for indoor, outdoor, and travel use, it features a joystick control system, reclining backrest, lift-up armrests, removable seat cushion, and a compact foldable design.

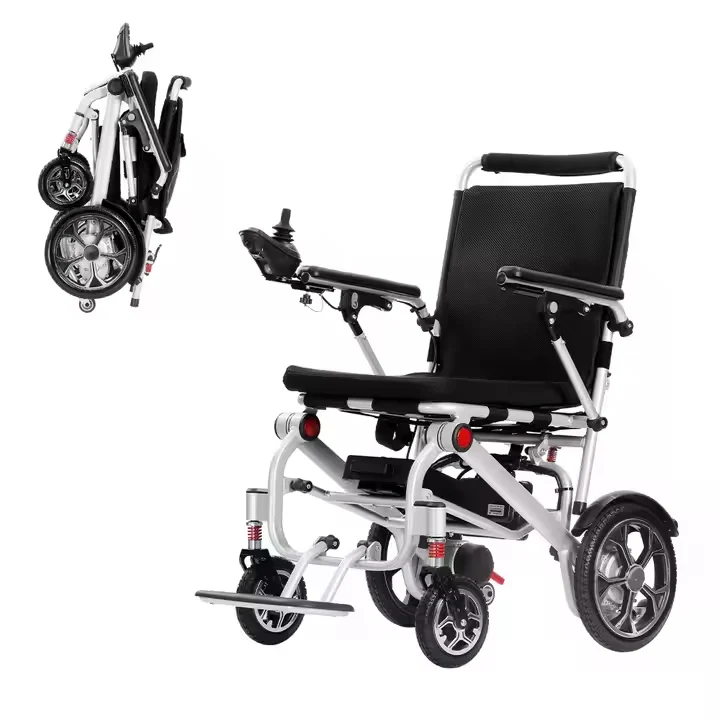

Key Features- Lightweight Foldable Design: Weighs 17.5 kg and folds within 5 seconds for easy storage and transportation.
- Dual Motor Drive System: Dual motors provide stable and powered mobility.
- 130 kg Load Capacity: Durable aluminum alloy frame supports users up to 130 kg.

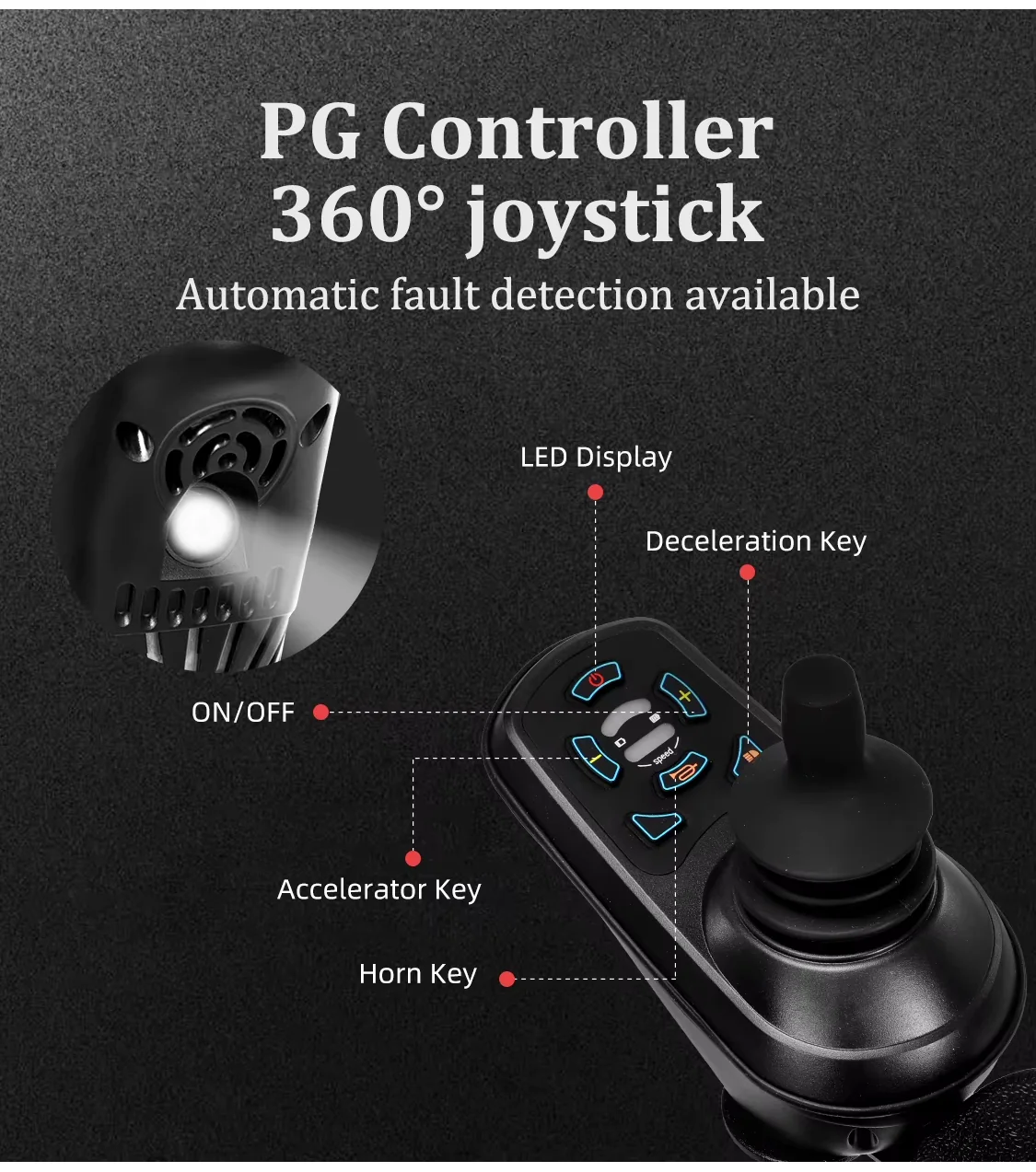

- Joystick Control: User-friendly joystick enables convenient operation.
- 360° Turning Capability: Front wheels support easy maneuvering and turning.
- Reclining Backrest: Adjustable backrest offers five reclining positions.
- Lift-Up Armrests: Armrests can be lifted to assist with side entry and exit.
- Removable Seat Cushion and Cover: Cushion and cover can be removed for easier cleaning.
- Compact Travel-Friendly Construction: Foldable design is suitable for storage, transport, and air travel.
- Suitable for Indoor and Outdoor Use: Designed for mobility across indoor and outdoor environments.
- Model: 76003
- Product Type: Folding Electric Wheelchair
- Frame Material: Aluminum Alloy
- Weight: 17.5 kg
- Load Capacity: 130 kg

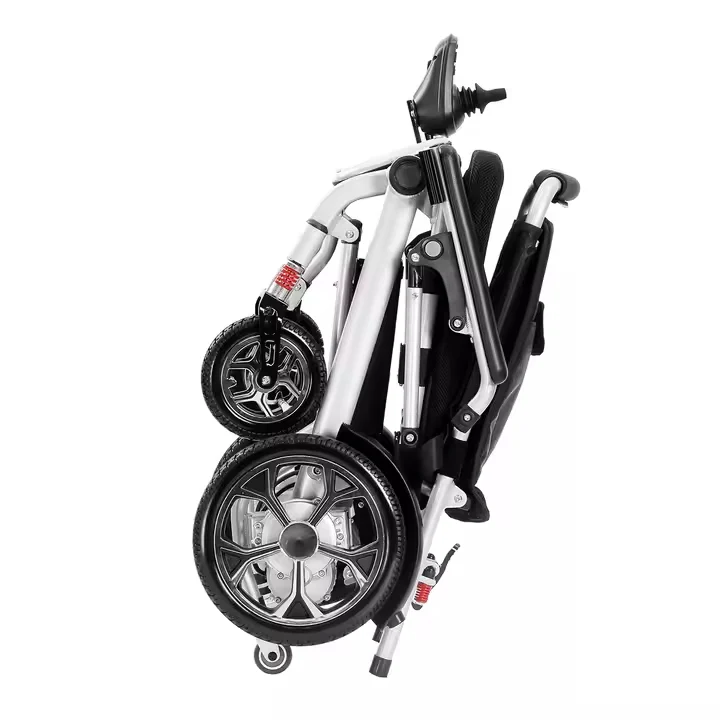

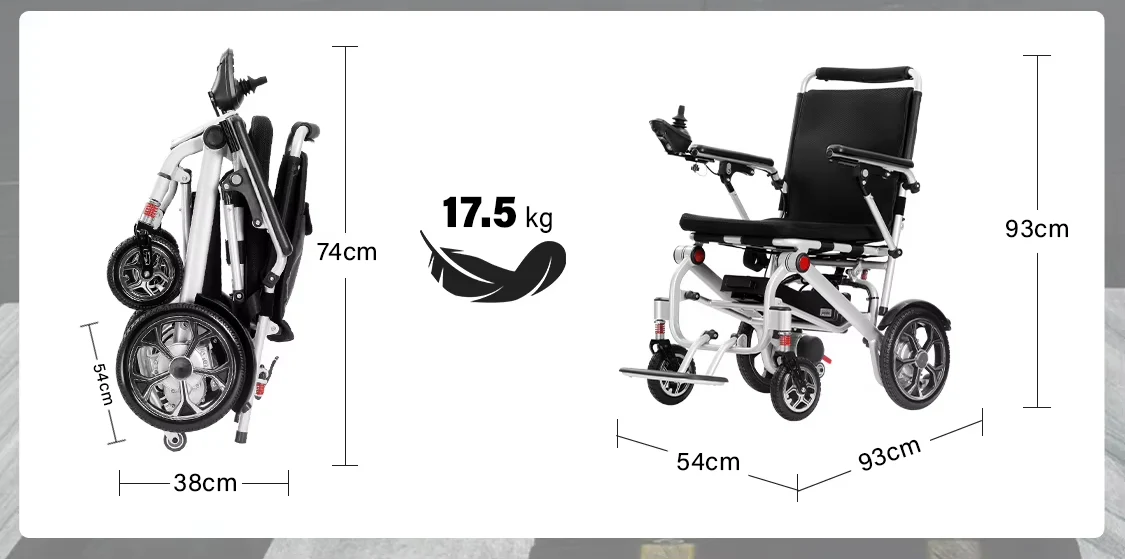

- Folded Dimensions (L × W × D): 54 × 58 × 74 cm
- Open Dimensions (L × W × D): 56 × 93 × 93 cm
- Internal Seat Width: 45 cm
- External Seat Width: 56 cm
- Maximum Speed: 4.5 km/h
- Motor Voltage: 24V
- Battery: 24V Lithium 12 Ah
- Control: Joystick
- Climbing Ability: ≥ 3° Planar Angle 4°
- Backrest Angle: 10°
- Backrest Height: 460 mm
- Backrest Width: 400 mm
- Front Height of Seat Surface: 500 mm
- Distance from Pedal to Seat: 400 mm
- Distance from Pedal to Ground: 465 mm
- Pedal Length: 90 mm
- Pedal and Leg Length: 165 mm
- Angle of Pedal and Leg: 106°
- Angle of Leg to Seat Surface: 117°
- Armrest Height: 190 mm
- Distance from Front of Armrest to Backrest: 340 mm
- Armrest Length: 265 mm
- Armrest Width: 50 mm
- Armrest Angle: 5°
- Distance Between Armrests: 470 mm
- Front Position of Armrest: 330 mm
- Axle Horizontal Offset: 90 mm
- Axle Vertical Offset: 305 mm
- Minimum Radius of Gyration: ≤ 900 mm
- Obstacle Climbing Height: ≥ 25 mm
- Static Stability: ≥ 6°
- Dynamic Stability: ≥ 3°
- Parking Performance: 6°
- Maximum Output Current of Controller Brush: 50A
- Maximum Output Current of Charger: 2A
- Front Wheel: Non-pneumatic tyre, outer diameter 15 cm
- Rear Wheel: Non-pneumatic tyre, outer diameter 23 cm
- Easy Storage and Transport: Weighs only 17.5 kg and folds within 5 seconds, making it ideal for travel and compact storage.
- Stable and Powerful Mobility: Dual motor drive system ensures smooth and reliable movement across various terrains.
- Comfortable and Customizable Seating: Reclining backrest with five positions and removable seat cushion enhance user comfort.
- Assisted Entry and Exit: Lift-up armrests simplify side entry and exit for users with limited mobility.
- Convenient Maintenance: Removable seat cushion and cover allow for easy cleaning and upkeep.
- Indoor mobility for home use
- Outdoor mobility on smooth surfaces
- Travel and air travel due to compact foldable design
